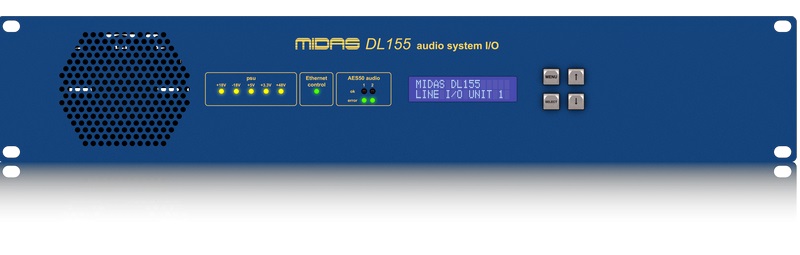

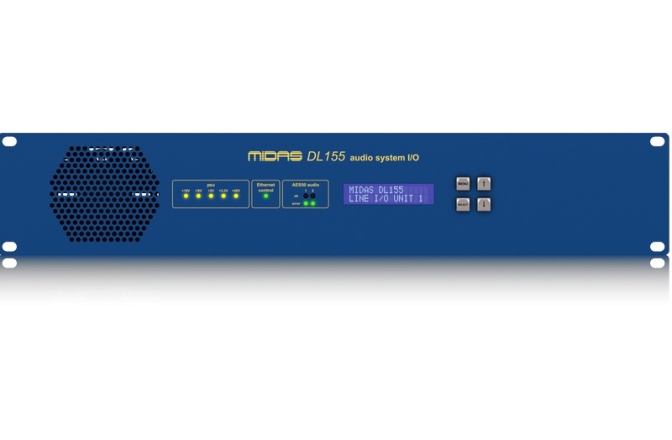

Midas DL155

Stage Box Midas DL155

• 8 preamplificatoare de microfon Midas
• +48 V phantom power
• Control de la distanta prin cablu 100 m via CAT5/5e
• 8 intrari/iesiri digitale AES3 (AES/EBU)
• Sample rate 96 kHz sau 48 kHz
• Toate setarile selectabile
• Ecran LCD
• Suporta retea duala AES50
• Port Neutrik etherCON* AES50
• Sasiu 2U
• Culoare: Albastru

Specificatii:

• Tip: stage box, Mic/Line Level
• Intrari analog: 8 XLR
• Iesiri analog: 8 XLR
• Intrari digitale: 4 (8 canale)
• Iesiri digitale: 4 (8 canale)
• 1 x RJ45 Ethernet
• 2 x Neutrik etherCON
• 1 x 9 pini diagnosic
• +48 V phantom power
• Sample rate:48 kHz, 96 kHz
• Gama dinamica: 107 dB (20 Hz - 20 kHz)
• Impedanta intrare/iesire: 10k Ω/ 50 Ω
• Conversie D/A 24 bit, 96 kHz
• Consum: 150 W
• Dimensiuni: 483 x 416 x 88 mm
• Greutate: 6.7 kg
