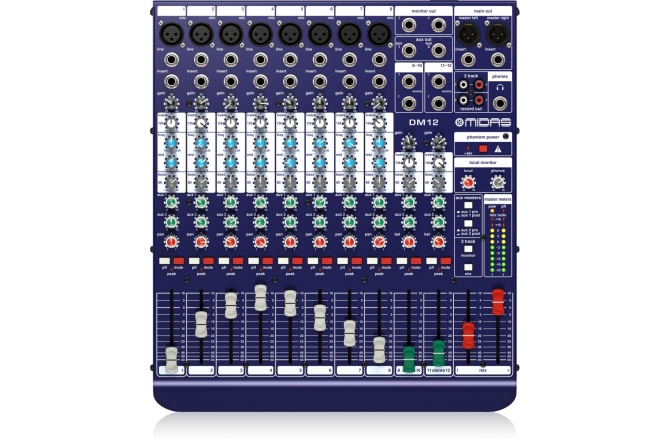

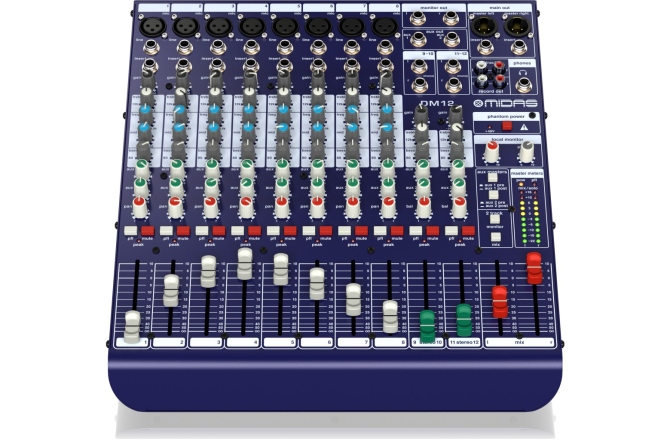

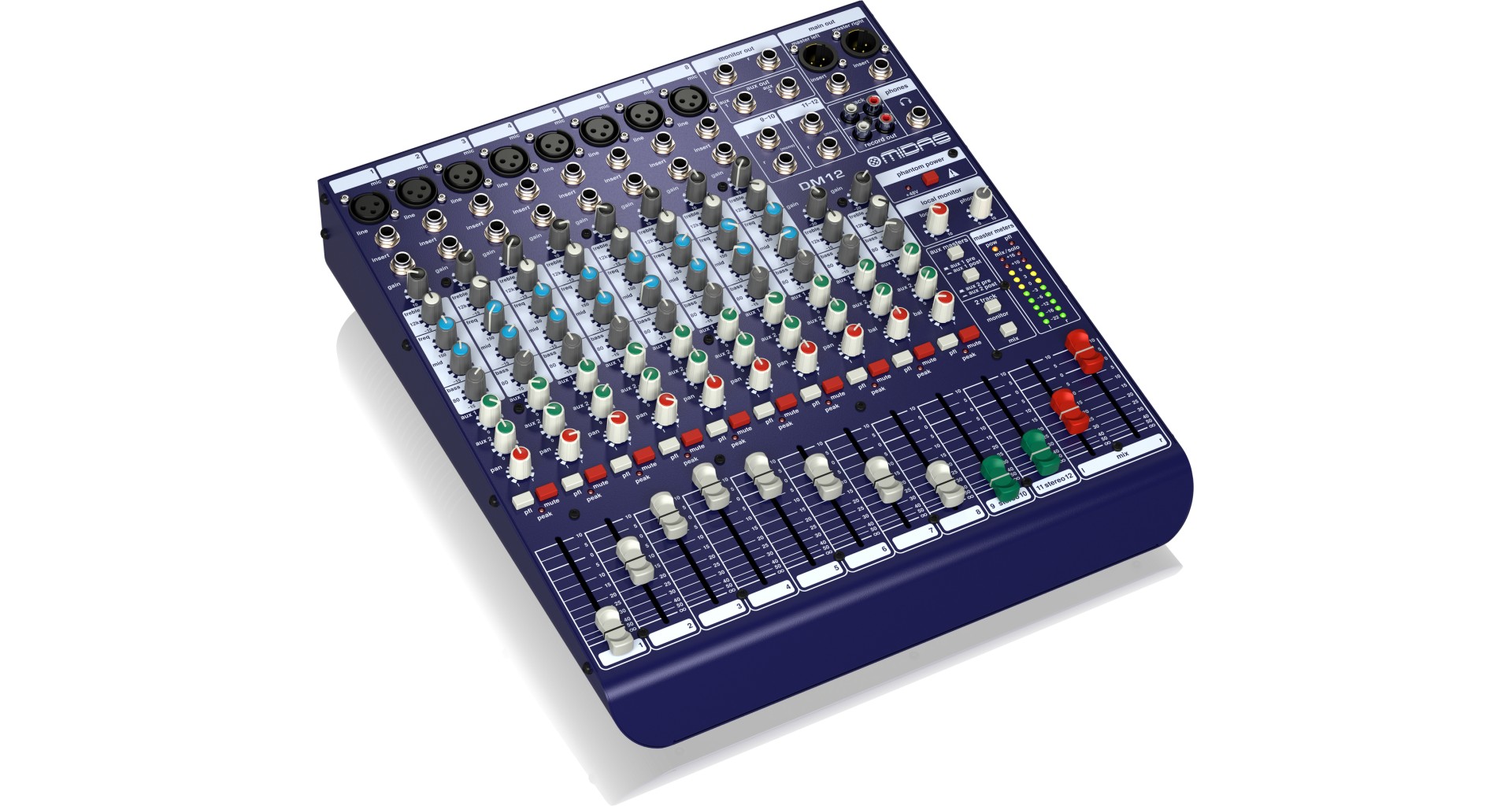

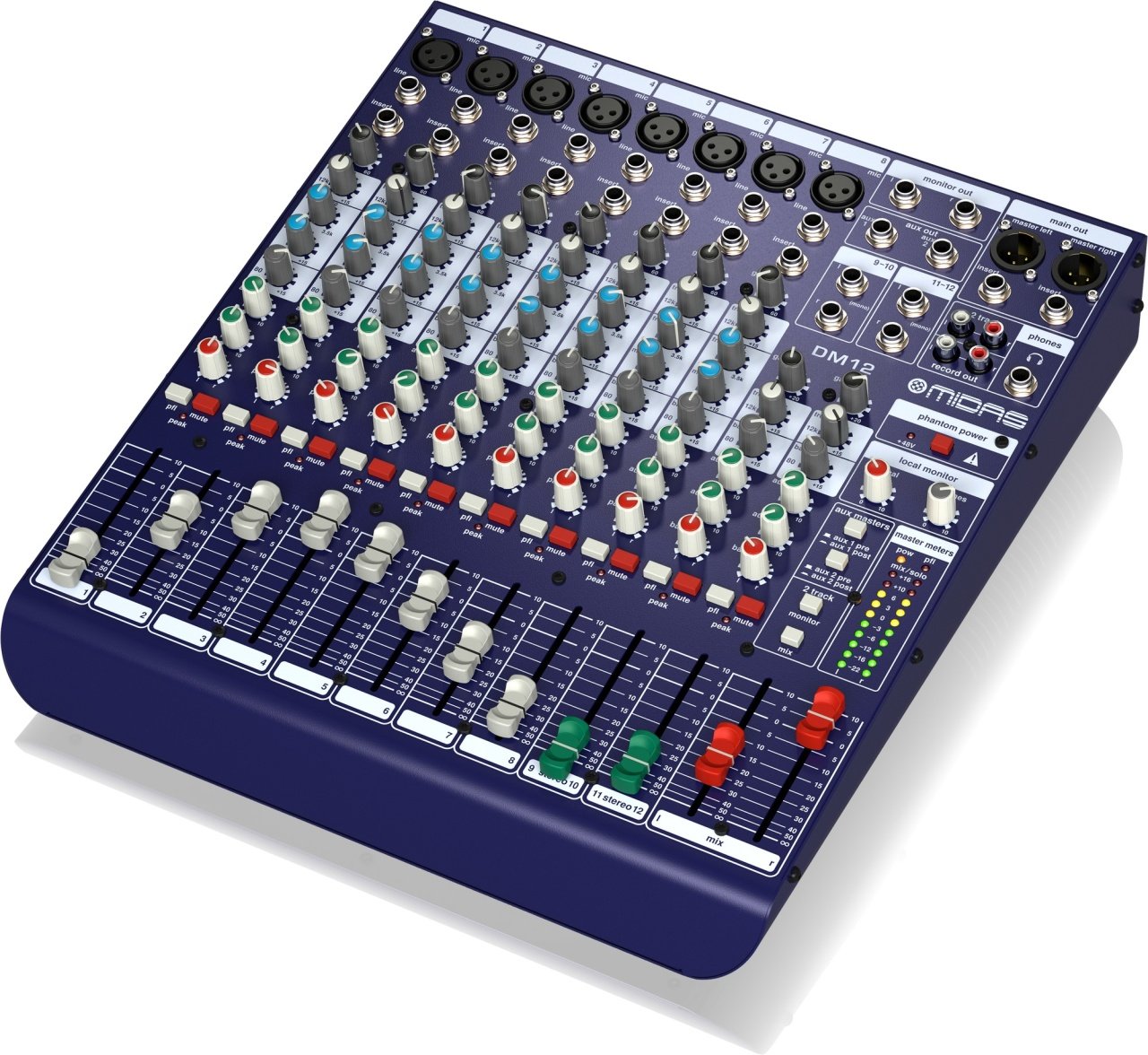

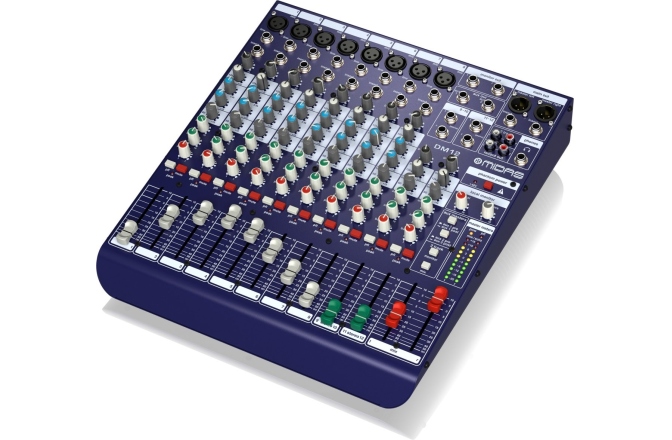

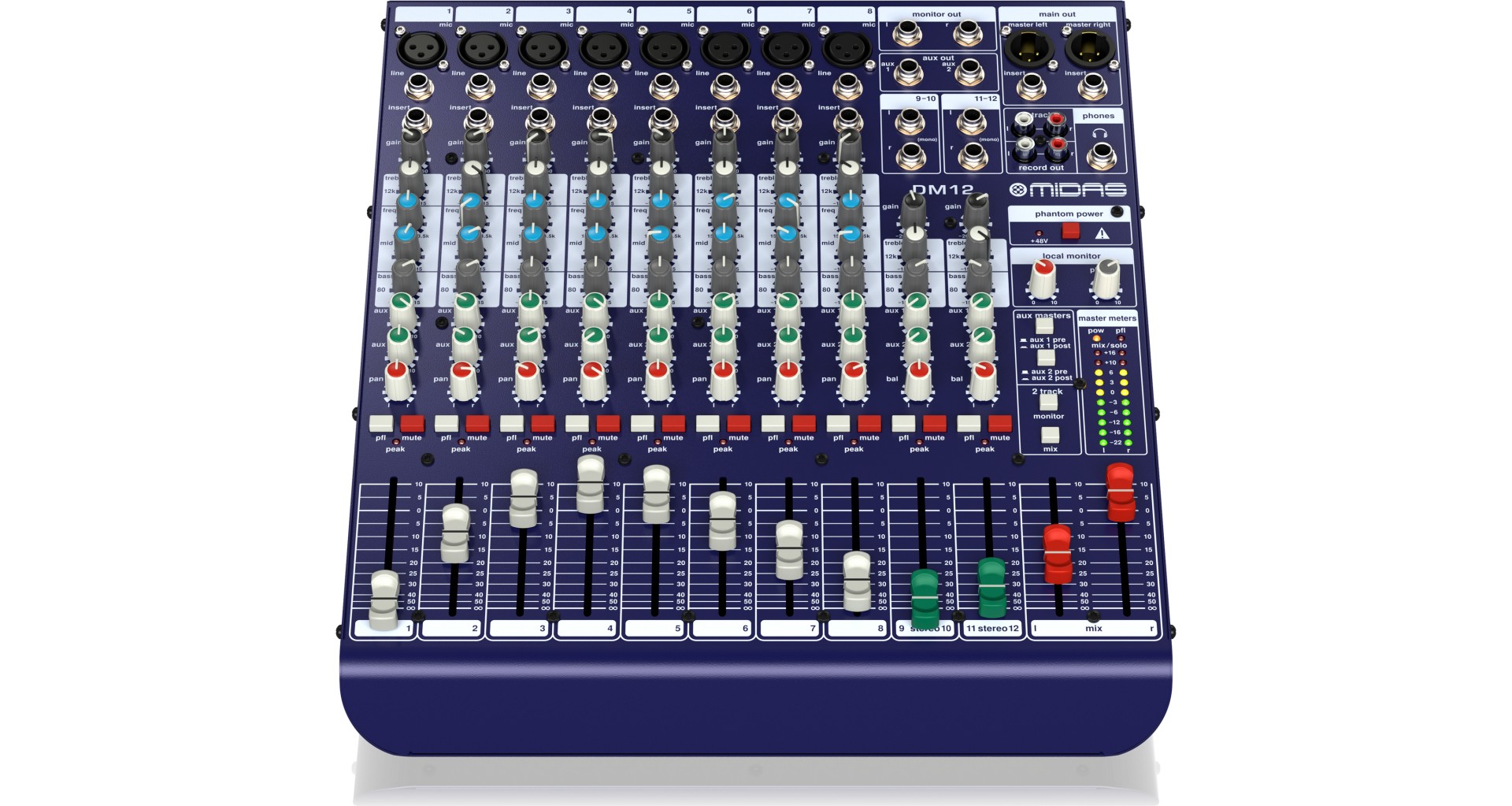

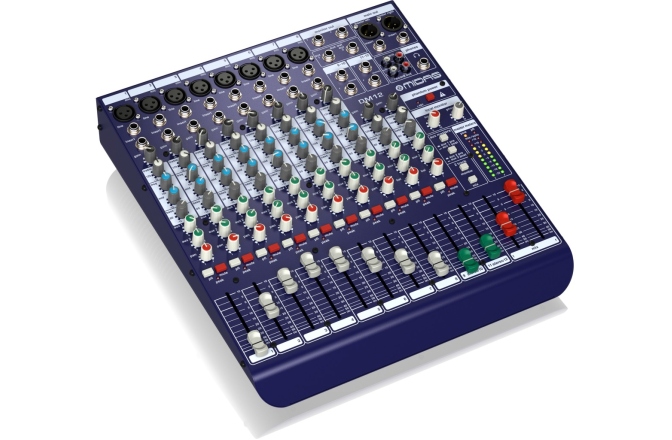

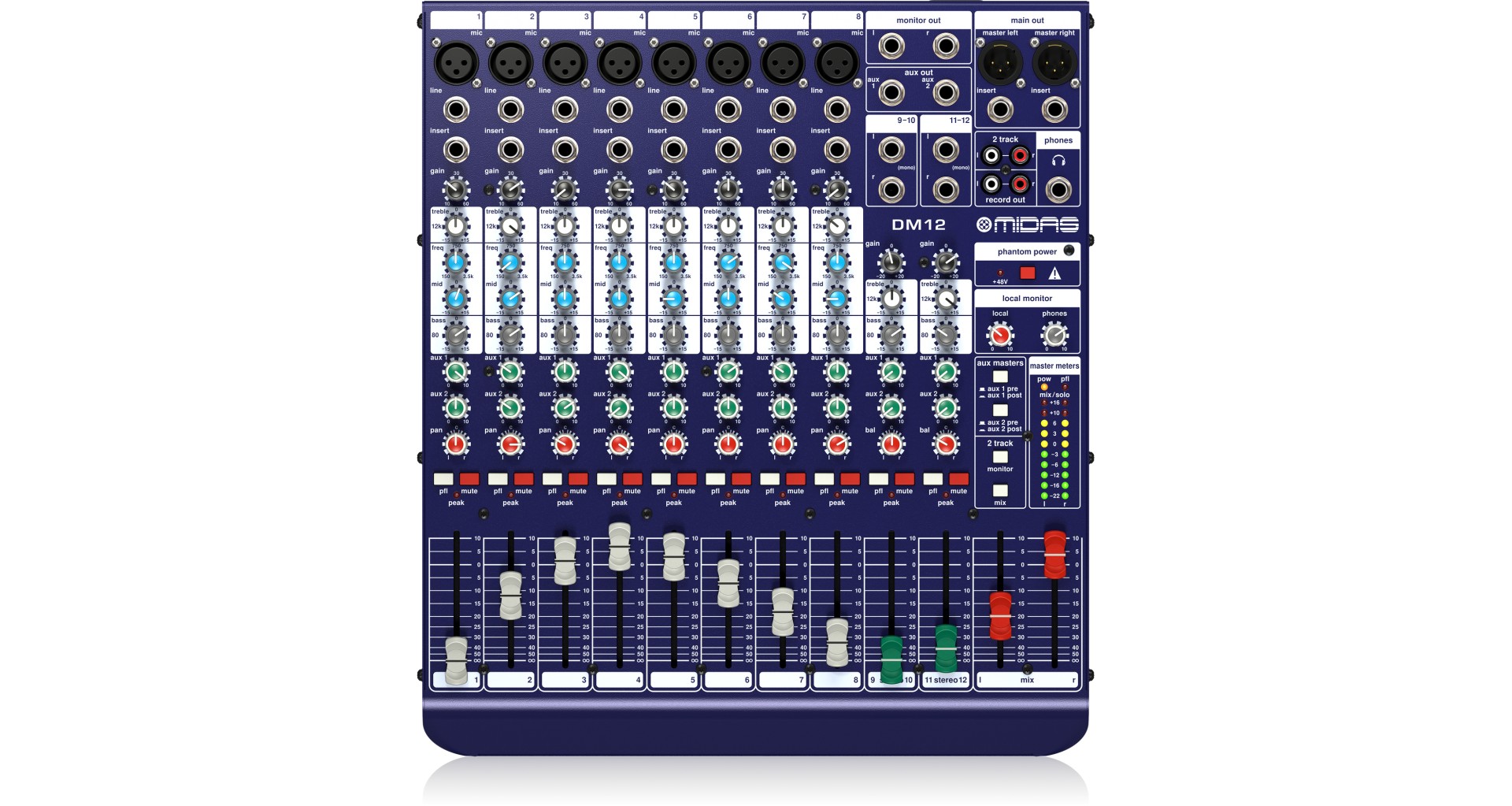

Midas DM12

Midas DM12 este un mixer analog, compact, cu 8 preamplificatoare Midas. Dispune de 12 intrari (8 mono si 2 stereo), EQ pe 3 benzi, iesiri auxiliare, iesiri de monitor si I/O RCA. Ideal pentru live si studio.

Specificatii Tehnice:

Intrari Mono

Intrari microfon (preamp Midas)

• Tip: XLR, balansat
• Numar: 12
• Mic EIN @ 60 dB gain, sursa 50 Ω la insert send: -131 dBu, neponderat, 20 Hz la 20 kHz
• Mic EIN @ 60 dB gain, sursa 150 Ω la insert send: -128 dBu, neponderat, 20 Hz la 20 kHz
• Zgomot @ 10 dB Gain, la insert send: -97 dBu, neponderat, 20 Hz la 20 kHz
• Raspuns in frecventa (-1 dB) la iesirea principala: 20 Hz la 20 kHz (-1 dB)
• Raspuns in frecventa (-3 dB) la iesirea principala: 70 kHz (-3 dB)
• Gama de amplificare microfon: +10 dB la +60 dB
• Nivel maxim de intrare: +11 dBu @ +10 dB gain
• CMRR @ +60 dB gain: Tipic -90 dB
• Impedanta: 2 kΩ, balansat
• Distorsiune (THD+N) la 0 dBu: 0.005% @ 1 kHz
• Phantom Power: Comutabila, +48 V

Intrari de Linie

• Tip: 1/4" TRS, balansat
• Impedanta: 20 kΩ balansat / nebalansat
• Gama de amplificare: -10 dB la +40 dB
• Nivel maxim de intrare: +30 dBu

Intrari Stereo

• Tip: 4 x 1/4" TRS, balansat
• Impedanta: 20 kΩ balansat / nebalansat
• Gama de amplificare: -20 dB la +20 dB
• Nivel maxim de intrare: +21 dBu

Egalizator

• Bass: ±15 dB @ 80 Hz, shelving
• Medii (numai intrari mono): ±15 dB @ 150 Hz la 3.5 kHz, semi-parametric variabil
• Inalte: ±15 dB @ 12 kHz, shelving

Insertii Canale

• Tip: 1/4" TRS, nebalansat
• Nivel maxim de intrare / iesire: +21 dBu

Aux Sends

• Tip: 2 x 1/4" TRS, balansat
• Impedanta: 240 Ω balansat, 120 Ω nebalansat
• Nivel maxim de iesire: +21 dBu

Monitor Out

• Tip: 2 x 1/4" TRS, balansat
• Impedanta: 240 Ω balansat, 120 Ω nebalansat
• Nivel maxim de iesire: +21 dBu

Iesire Principala

• Tip: 2 x XLR, electronic balansat
• Impedanta: 100 Ω balansat, 50 Ω nebalansat
• Nivel maxim de iesire: +21 dBu

Insertii Iesire Principala

• Tip: 2 x 1/4" TRS, nebalansat
• Nivel maxim de intrare / iesire: +21 dBu

Iesire Casti

• Tip: 1/4" TRS, nebalansat
• Impedanta: 25 Ω
• Nivel maxim de iesire: +21 dBu
• Intrare 2-Track
• Tip: 2 x RCA, nebalansat
• Impedanta: 20 kΩ
• Nivel maxim de intrare: +21 dBu

Iesire Record

• Tip: 2 x RCA, nebalansat
• Impedanta: 1 kΩ
• Nivel maxim de iesire: +21 dBu
• Zgomot Sistem Mix
• Main mix @ -∞, fader canal @ -∞: -104 dBu, neponderat, 20 Hz la 20 kHz
• Main mix @ 0 dB, fader canal @ -∞: -91 dBu, neponderat, 20 Hz la 20 kHz
• Main mix @ 0 dB, fader canal @ 0 dB: -84 dBu, neponderat, 20 Hz la 20 kHz

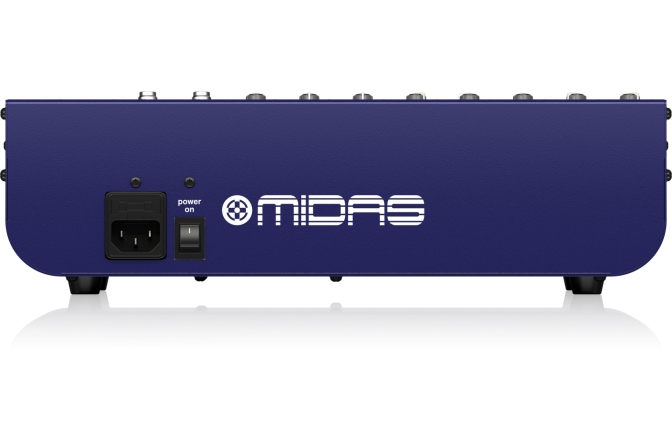

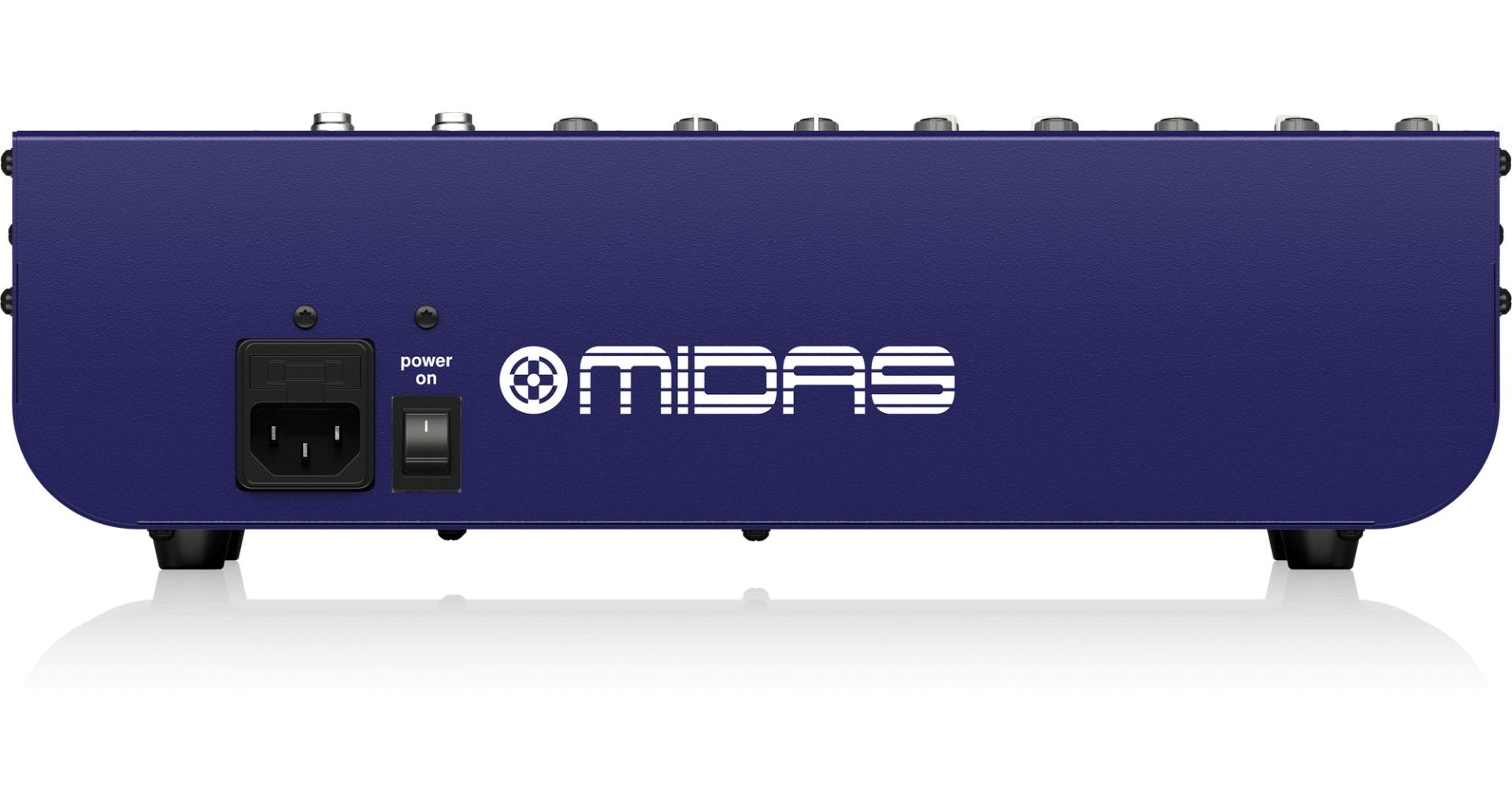

Alimentare / Tensiune (Fuze)

• Sursa de alimentare: Comutabila, 100-240 V~ 50/60 Hz (T 1.6 A H 250 V)
• Consum de putere: 40 W
• Conexiune mains: Receptacul standard IEC

Dimensiuni / Greutate

• Dimensiuni (H x W x D): 95 x 328 x 370 mm
• Greutate: 3.9 kg
