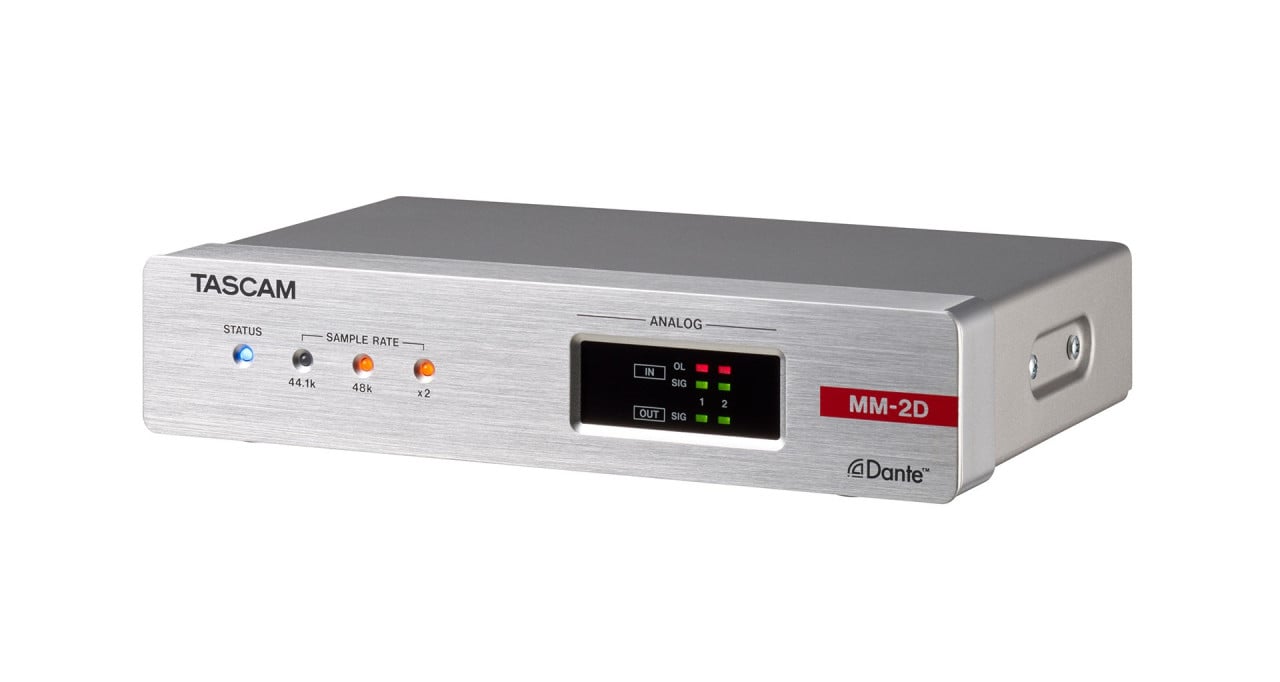

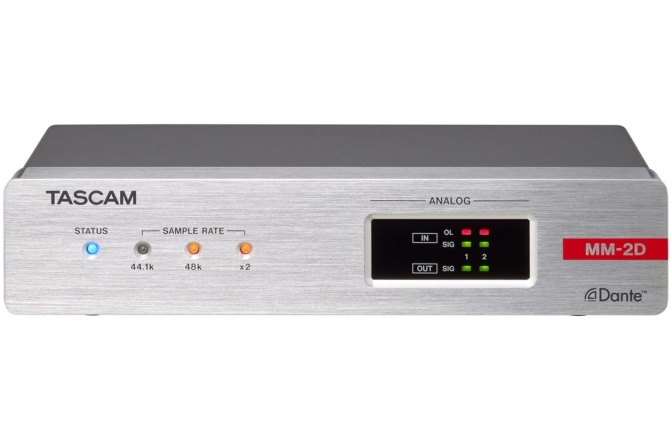

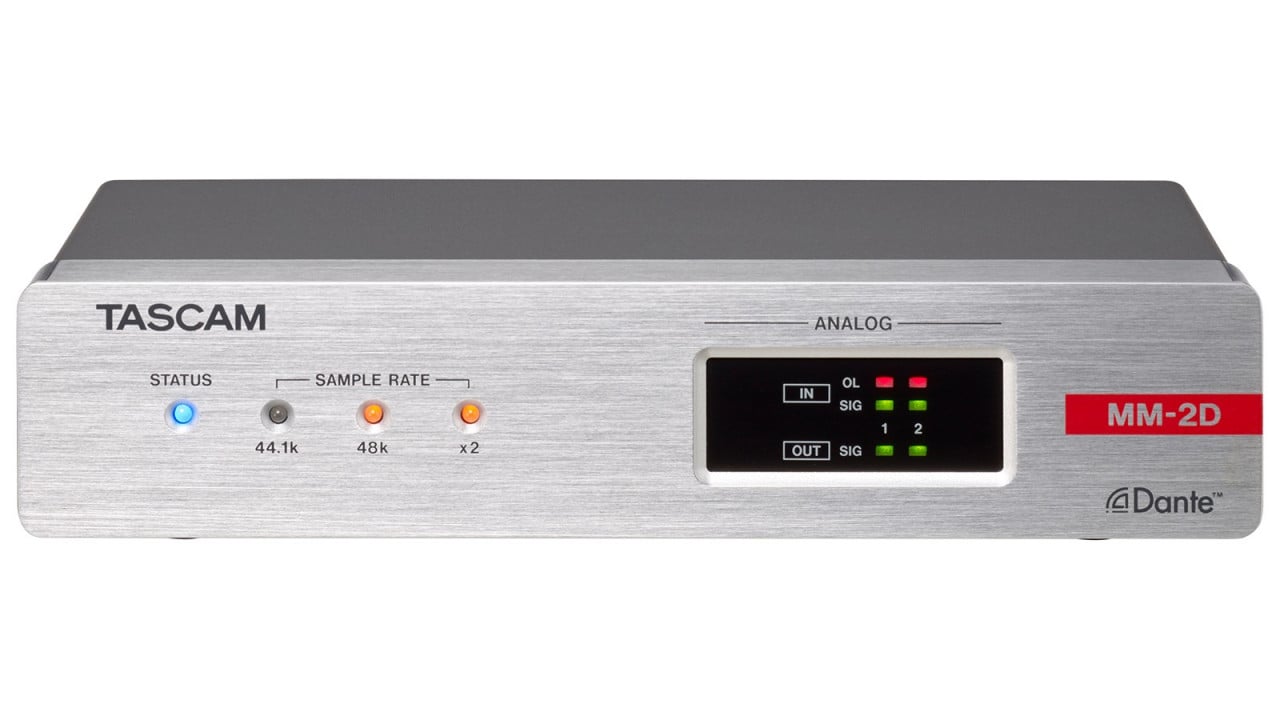

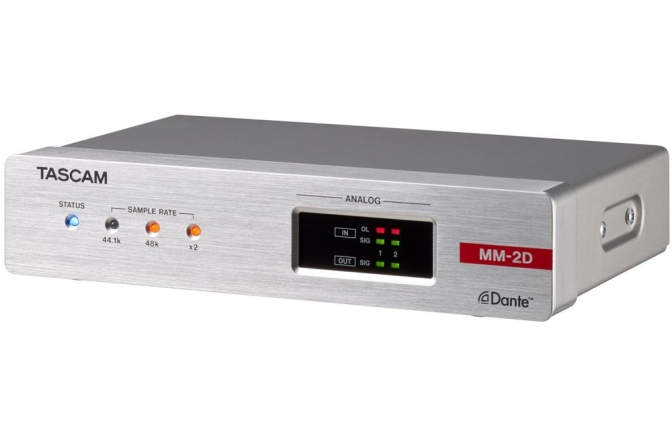

Tascam MM-2D-X

MM-2D-E este un convertor compact cu 2 canale si DSP ce dispune de conectori XLR 1/2 19", 1U. Acesta converteste semnalele de intrare Dante in semnale de iesire linie.

Specificatii tehnice:

• Formate: 44.1/48/88.2/96kHz,16/24-bit
• Numar de canale: 2

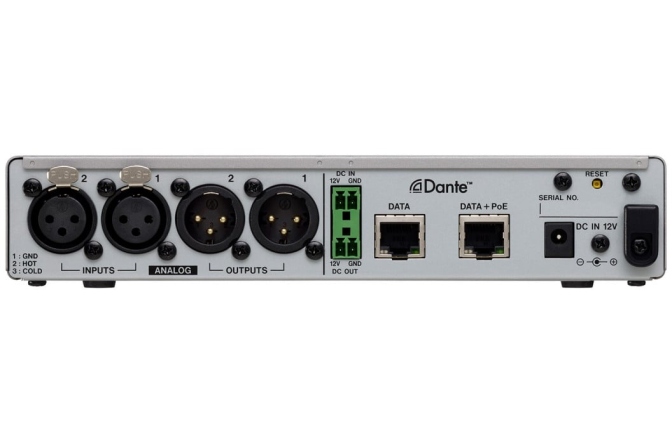

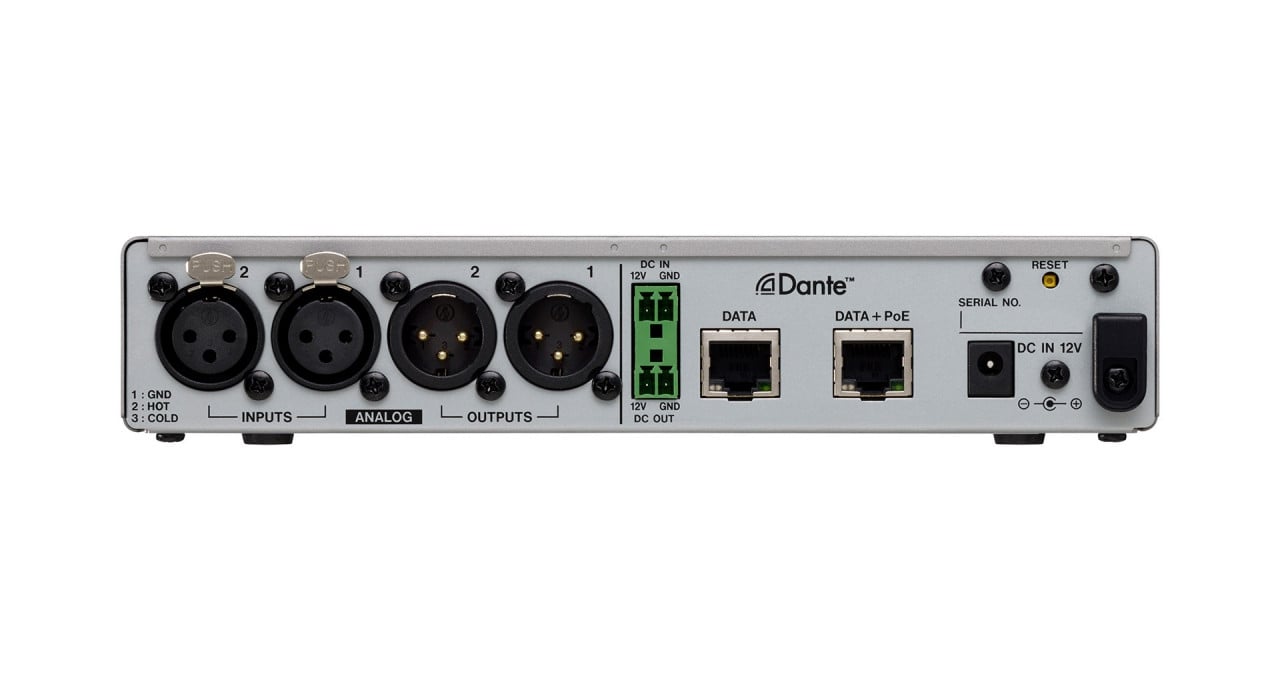

Conexiuni DATA/DATA+PoE

• Conexiune: RJ-45
• Protocol de transmitere: Dante
• Gigabit Ethernet standard: 1000BASE-T (IEEE 802.3ab)
• Cabluri: 5e sau STP

Conexiuni intrari analogice:

• Conexiune: XLR-3-31 (1: GND, 2: HOT, 3: COLD)
• Nivel minim de intrare: -74 dBu
• Nivel maxim de intrare: +26 dBu
• Impedanta de intrare: 2.0 kΩ

Conexiuni iesiri analogice:

• Conexiune: XLR-3-32 (1: GND, 2: HOT, 3: COLD)
• Nivele nominale de iesire:
• +4 dBu (Ref. Level -9 dBFS)
• +6 dBu (Ref. Level -9 dBFS)

Nivel maxim de iesire (comutabil)

• +15 dBu (Ref. Level: -9 dBFS)
• +18 dBu (Ref. Level: -14 dBFS)
• +20 dBu (Ref. Level: -16 dBFS)
• +22 dBu (Ref. Level: -18 dBFS)
• +24 dBu (Ref. Level: -20 dBFS)

Impedanta de iesire: 200 Ω

• Alimentare: PoE class 0
• Consum de putere: 6W
• Dimensiuni: 214 x 44.45 x 136.1 mm
• Greutate: 878 g
• Interval de temperatura de operare: 0°C-40°C

MIC IN → DANTE OUT
Amplificator microfon EIN (nivel zgomot echivalent: -125 dBu (150Ω, 22kHz LPF+A, JEITA)
Raspuns in frecventa:

• +/-0.5 dB: 20 Hz - 20 kHz(44.1/48kHz sampling frequency, JEITA)
• +/-0.5 dB: 20 Hz - 40 kHz(88.2/96kHz sampling frequency, JEITA)

• Distorsiune(THD+N) 0.005 %(-1 dBFS input, 44.1/48/88.2/96kHz, JEITA)
• Raport S/N: 105 dB (44.1/48/88.2/96kHz, JEITA)
• Crosstalk: 100 dB (44.1/48/88.2/96kHz, JEITA)
• Interval dinamic: 105 dB (44.1/48/88.2/96kHz, JEITA)

DANTE IN → LINE OUT
Raspuns in frecventa:

• +/-0.5 dB: 20 Hz - 20 kHz(44.1/48kHz, JEITA)
• +/-0.5 dB: 20 Hz - 40 kHz(88.2/96kHz, JEITA)

• Distorsiune (THD+N): 0.005 %(when -1 dBFS input, 44.1/48/88.2/96kHz, JEITA)
• Raport S/N:105 dB (44.1/48/88.2/96kHz, JEITA)
• Crosstalk: 100 dB (44.1/48/88.2/96kHz, JEITA)
• Interval dinamic: 105 dB (44.1/48/88.2/96kHz, JEITA)
