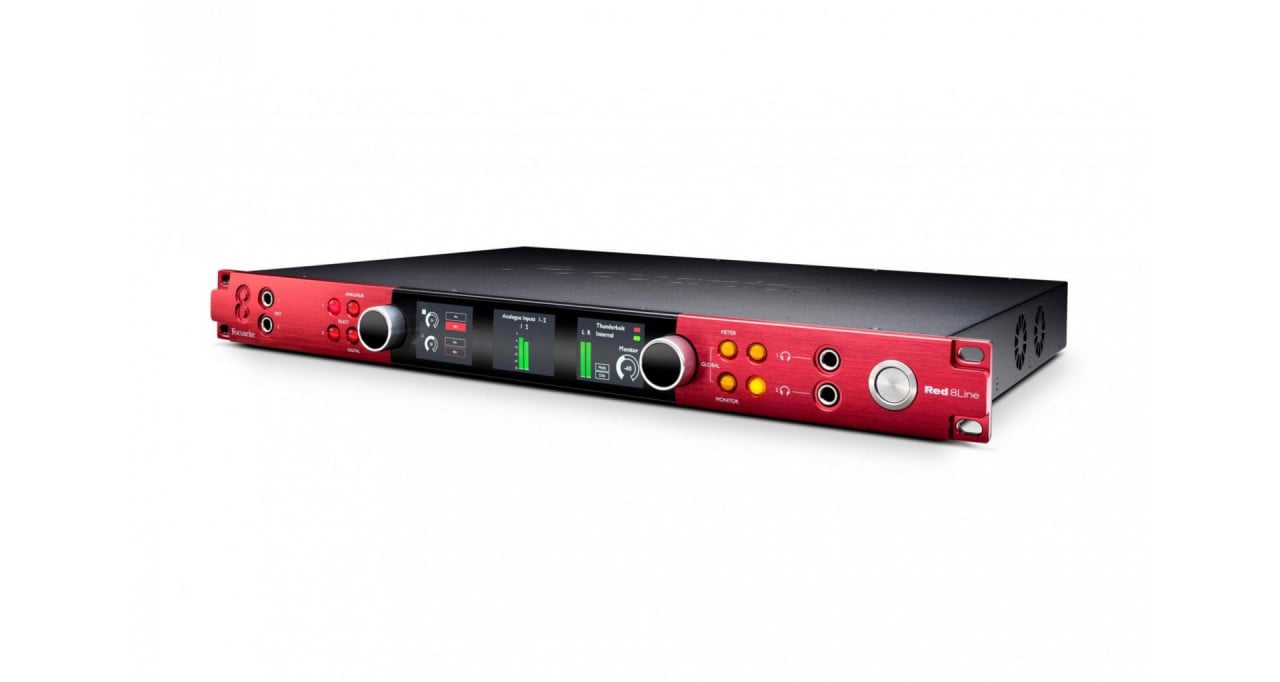

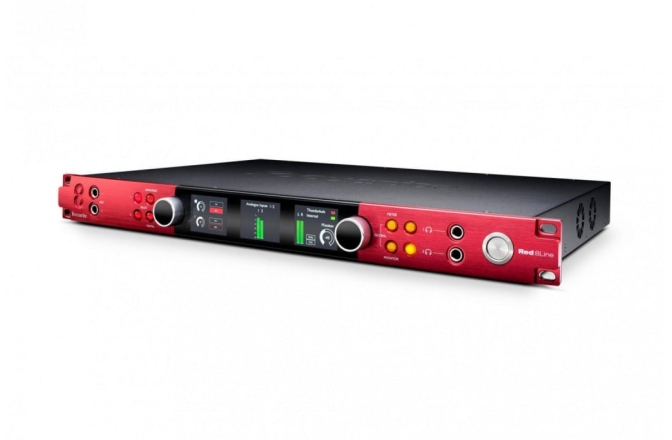

Red 8Line este o interfata audio Thunderbolt 3 de 58 intrari si 64 iesiri, cu 2 preamplificatoare de microfon Red Evolution si 8 canale Line balansate I/O cu conectori DB25. Are conectivitate audio cu nivel de linie, DigiLink, Dante, ADAT si S/PDIF.
Caracteristici esentiale:
- Conversie audio de o calitate extrem de inalta: AD/DA 24 bit / 192 kHz cu gama dinamica 119 dB AD si 121 dB DA.
- Mod de lucru versatil pe mai multe platforme: Comutarea dintre DAW-uri in cateva secunde, folosind panoul frontal.
- 2 preamplificatoare Red Evolution controlabile la distanta: Cu gain ultra-clean de pana la 63 dB, phantom power, inversare polaritate, filtru Hi-pass, plus modul Air, ce ofera o emulare analogica a caracteristicilor cunoscutului preamp ISA.
- Implementare a Thunderbolt 3: Drivere pentru Mac sau PC cu latenta ultra-mica ce ofera flexibilitatea folosirii plugin-urilor in timp real. Cele 2 porturi Thunderbolt fac un daisy chain pentru a conecta mai multe dispozitive.
- Conectivitate Pro Tools HD ca standard - 2 porturi mini DigiLink ofera conectivitate directa cu placile Pro Tools HD, fara necesitatea unor dispozitive de expansiune.
- Conectivitate Dante ca standard: 2 porturi Dante permit conexiunea la protocolul audio-over-ip standard in industrie, pentru expansiune si interoperabilitate cu alte dispozitive digitale.
- Iesiri de monitor dedicate L/R si control usor de utilizat: Controlul de monitoare suporta monitorizare mono, stereo si multichannel pana la 7.1
- Intrari si iesiri analogice extensibile: 8 intrari si iesiri Line pe DB25. iesiri independente de monitoare L/R. 2 preampuri de mcrofon Red Evolution si 2 iesiri stereo de casti.
- Afisaj de precizie: 3 afisaje LCD ofera metering de acuratete pentru orice intrare sau iesire, monitoare principale si iesiri de casti.
Specificatii:
Intrari si iesiri simultane
- Channel Count Up to 58 x 64
- System Requirements
- Computer: Apple Mac with at least one Thunderbolt 3 port (or Thunderbolt 1 / 2 port and Apple Thunderbolt 3 adapter) running supported OS. Windows 10 system with at least on Thunderbolt 3 port (Thunderbolt 1 / 2 Windows systems are not supported)."
- Other: Internet connection for downloading and installing software and driver
Microphone Inputs
- All measurements taken at maximum gain unless otherwise stated, Rs = 150Ohm
- Gain Range: 0-8dB to 63dB in 1dB steps
- Type: Electronically Balanced, Zin = 6.2kOhm
- Max. Input Level: >.+19dBu, min gain
- Frequency Response: 20Hz - 35kHz +/-0.2dB, min gain
- THD + N: -101dB (0.0009%) @ -1dBFS (@ 11dB Gain)
- EIN: <.-129dBu "A"-Weighted (typical)
- Signal-to-Noise Ratio: 119dB "A"-Weighted (typical), min gain
- Common-Mode Rejection Ratio: 50/60Hz CMRR: -90dB
- Phantom Power: +48V, independently switchable per channel.
- HPF: High-Pass Filter (HPF): -3dB @ 80 +/- 3Hz, 12dB/Octave, independently switchable per channel
- Air Mode: 2dB boost at 10kHz and -2dB at 20Hz (ref 1kHz). Input impedance drop to 2.2kOhm
Line Inputs 1-8
- All measurements taken at 24dBu, Rs = 600Ohm
- 0 dBFS Reference Level: +18 or +24dBu (switchable)
- Type: Electronically Balanced, Zin = 20kOhm
- Frequency Response: 20Hz - 35kHz +/-0.2dB
- THD + N: -102dB (0.0008%) @ -1dBFS
- Signal-to-Noise Ratio: 119dB "A"-Weighted (typical)
- Common-Mode Rejection Ratio: 50/60Hz CMRR: -70dB
Instrument Inputs
- All measurements taken at maximum gain unless otherwise stated, Rs = 600Ohm
- Gain Range: 0-8dB to 63dB in 1dB steps
- Type: Zin = 2.3MOhm
- Max. Input Level: >.+15dBu, min gain
- Frequency Response: 20Hz - 35kHz +/-0.2dB, min gain
- THD + N: -100dB (0.001%) @ -1dBFS (@ 11dB Gain)
- Signal-to-Noise Ratio: 117dB "A"-Weighted (typical), min gain
- HPF: -3dB @ 80 +/- 3Hz, 12dB/Octave, independently switchable per channel
- Air Mode: 2dB boost at 10kHz and -2dB at 20Hz (ref 1kHz)
Line Outputs 1-8
- All measurements taken at maximum output level, Rs = 100kOhm
- 0 dBFS Reference Levels: +18 or +24dBu (switchable)
- Frequency Response: 20Hz - 35kHz +/-0.2dB
- THD + N:
- Dynamic Range: 121dB "A"-weighted (typical), 20Hz - 20kHz
- Output impedance: Nominal output impedance = 136Ohm balanced (68Ohm each phase)
Monitor Outputs
- All measurements taken at maximum output level, Rs = 100kOhm
- 0 dBFS Reference Levels: +18dBu
- Frequency Response: 20Hz - 35kHz +/-0.2dB
- THD+N: -80dB (0.01%) unweighted, 20Hz - 20kHz. -1dBFS input
- Dynamic Range: 120dB (A-Weighted)
- Output impedance: Nominal output impedance = 136Ohm balanced (68Ohm each phase)
Headphone Outputs
- All measurements taken at maximum output level, Rs = 600Ohm
- 0 dBFS Reference Levels : +16dBm +/- 0.5dB
- Frequency Response: 20Hz - 20kHz +/-0.2dB
- THD + N:
- Dynamic Range: 114dB "A"-weighted (typical), 20Hz - 20kHz
- Output Impedance: 10Ohm
- Headphone Impedance: 32Ohm - 600Ohm
Crosstalk
- Microphone Crosstalk
- Mic Input to Input:
- Mic Input to Output:
- Output to Mic Input:
Line Crosstalk
- Line Input to Line Input:
- Line Input to Output:
- Output to Line Input:
Output Crosstalk
Headphone Crosstalk
Digital Performance
- Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
- Clock Sources: Internal, ADAT 1, ADAT 2, S/PDIF, Word Clock, Loop Sync or from Dante Network Master

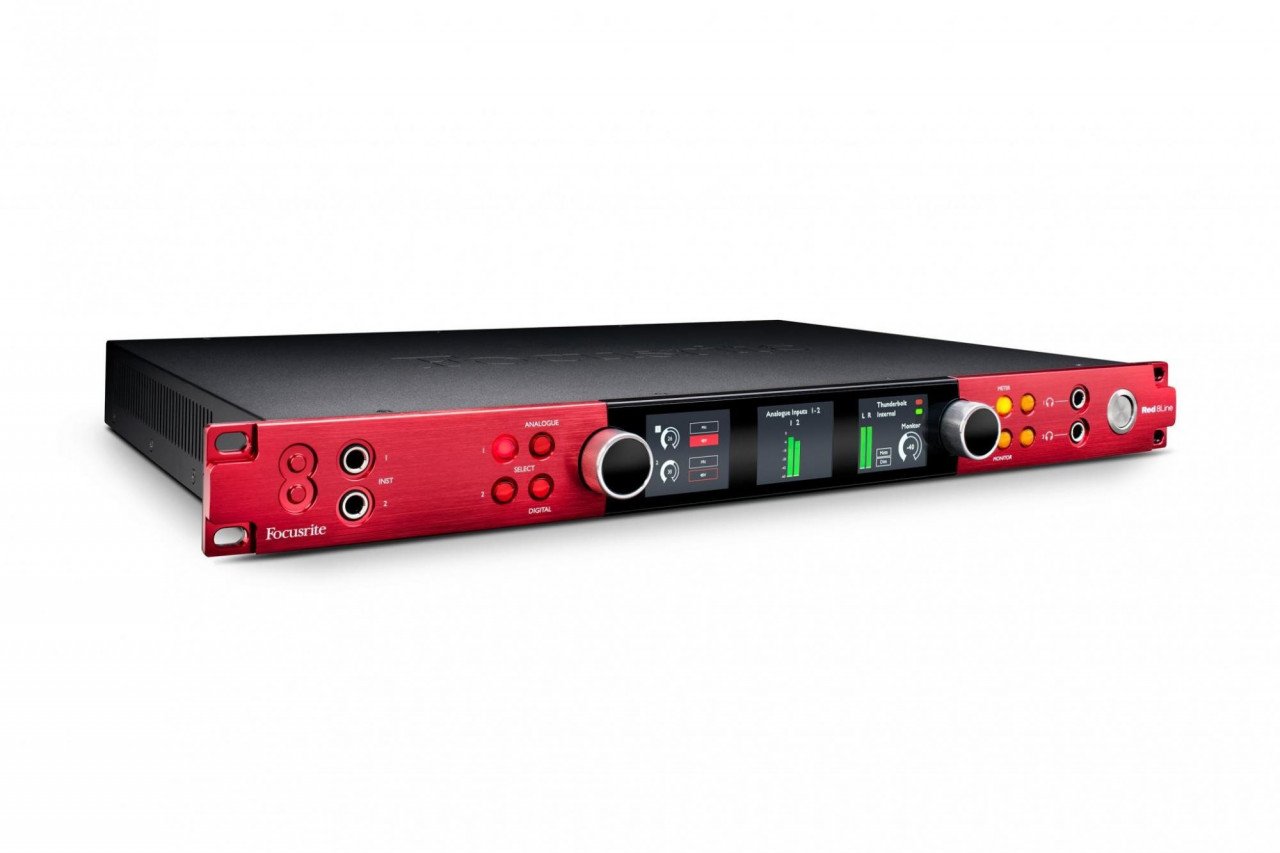

Front Panel Connectivity
- Instrument Inputs
- Channel Count: 2 Channels In
- Instrument Inputs: 2 x 1/4" TS jack
Headphone Outputs
- Channel Count: 2 Stereo Channels Out
- Headphone Outputs: 2 x 1/4" TRS stereo jack

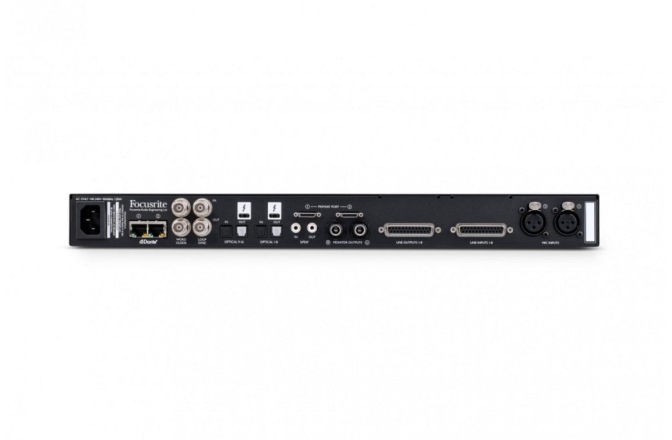

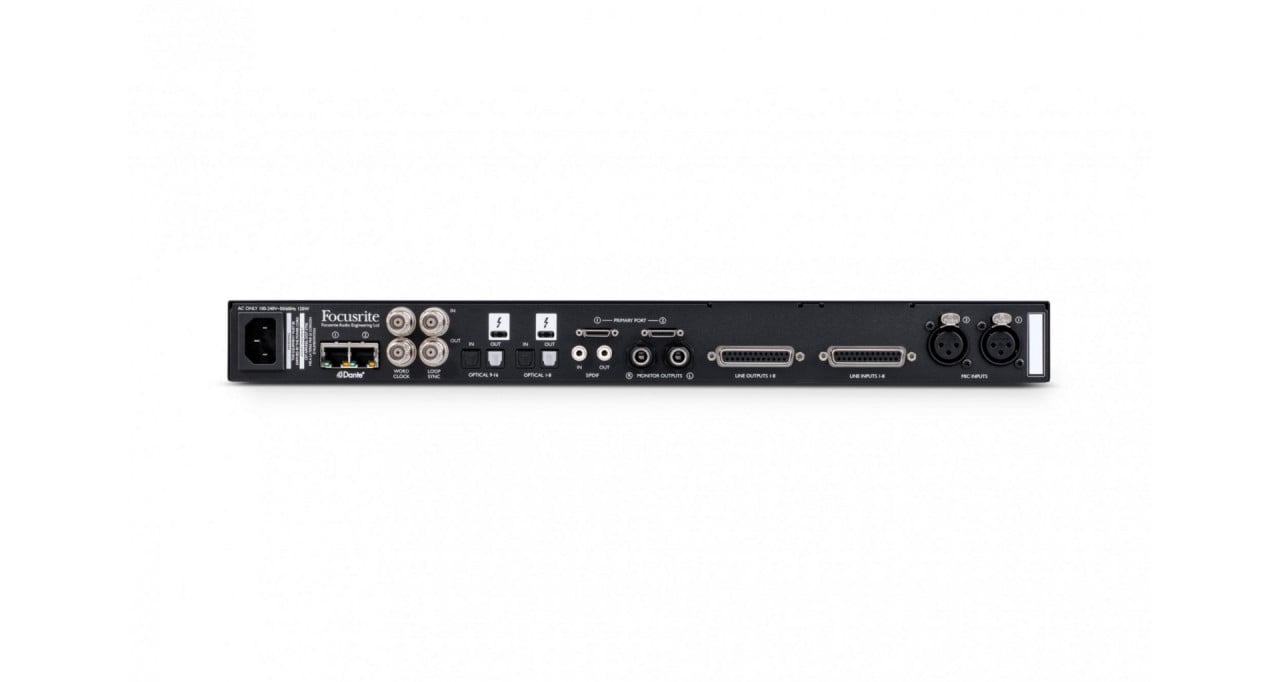

Rear Panel Connectivity
- Thunderbolt
- Channel Count: Up to 58 In and 64 Out
- Thunderbolt Ports: 2 x Thunderbolt 3 Ports (Primary Port 1 and Primary Port 2)
Pro Tools|HD
- Channel Count: Up to 58 In and 64 Out (32 In and 32 Out per connection)
- Primary Port: 2 x Mini DigiLink
Dante
- Channel Count: Up to 32 In and 32 Out
- Input and Output: 2 x Ethernet standard RJ45 connectors (Compatible with Cat 5e and above).
Mic Inputs
- Channel Count: 2 In
- Input: 2 x Female XLR
Line Level
- Channel Count: 8 In and 8 Out
- Input: 2 x DB-25 connectors (AES59)
- Output: 2 x DB-25 connectors (AES59)
ADAT
- Channel Count: Up to 16 In and 16 Out
- Input: 2 x TOSLINK connector
- Output: 2 x TOSLINK connector
- Channel Assignments @ 44.1 kHz, 48 kHz: Port 1 = Channels 1 - 8 , Port 2 = Channels 9 - 16
- Channel Assignments @ 88.2 kHz, 96 kHz: SMUXI: Port 1 = Channels 1 - 4, Port 2 = Channels 5 - 8
- Channel Assignments @ 176.4 kHz, 192 kHz: SMUXII: Port 1 = Channels 1 - 2 , Port 2 = Channels 3 - 4
S/PDIF
- Channel Count: 2 In and 2 Out (Optical up to 96kHz)
- Input: 1 x RCA phono socket (1 x TOSLINK up to 96kHz)
- Output: 1 x RCA phono socket (1 x TOSLINK up to 96kHz)
Monitor Outputs
- Channel Count: 2 Out
- Montor Outputs: 2 x 1/4" TRS jack
Loop Sync
- Loop Sync Input: 1 x BNC 75Ohm port
- Loop Sync Output: 1 x BNC 75Ohm port
World Clock
- Word Clock Input: 1 x BNC 75Ohm port
- Word Clock Output: 1 x BNC 75Ohm port
PSU
Front Panel Indicators
- Screens: 3 x Screens (menus and metering)
- Control Functions: 2 x Encoders (menu navigation, channel functions (Gain, +48V, Phase, HPF, Air and Mic/Line/Inst) monitor and headphone outputs (Level, Mute and Dim)). 4 x Switches (control over menus & metering)
Power
- PSU: 1 x Internal, 100-240V, 50/60Hz, consumption 120W.
Heat Performance
- Operating Temperature: Operates at an ambient temperature of up to 40 degrees Celsius
- Fan: Dual fan
