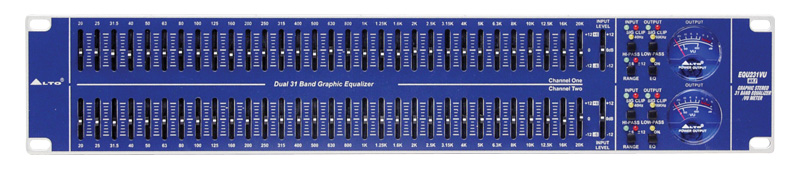

Alto EQU 231VU MKII

Features: - Control range 6dB or 12dB selectable -Bypass function - Switchable Hi-pass and Low-pass filters. - Balanced XLR, 1/4" TRS and RCA input and output connectors - Signal clip LED - Ground "LIFT" switch to disconnect signal ground from chassis ground - Line voltage selectable (115V / 230V) - Control Range: ±6dB or 12dB selectable - Inputs and Outputs: XLR, 1/4" TRS and RCA jack - Inputs Impedance: 20KΩ (bal) 15KΩ (unbal) - Outputs Impedance: ＜600Ω - High Pass Filter: 40Hz (12dB/oct) - Low Pass Filter: 16kHz (12dB/oct) - Max. Input Level: ＋18dBV - Max. Output Level: ＋16dBV - THD%: 0.02% (at 1kHz, all slider at center) - Frequency Response: 20Hz to 50kHz, －3dB (all slider at center) - S/N Ratio: 117dB - Power Supply: AC 100V-120V, 60Hz / AC 200V-240V, 50Hz - Power Consumption: 15 watts (max) EQU231VU MKII - Type: 231, 1/3 octave, ISO spacing - Slider Type: 20mm with center detect - Dimensions (WDH): 48318788.8mm (19"7.4"3.5") - Weight: 5.2kg
